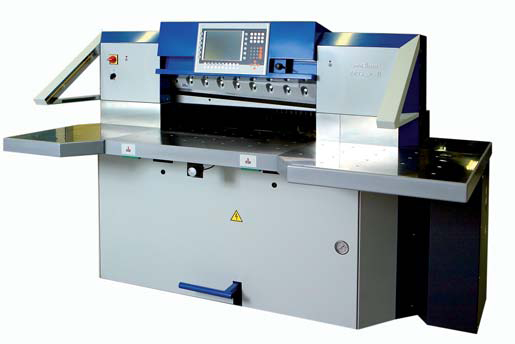

MAXIMA M92 profi

NEW










Basic Equipment / Standard Accessories

Electrical system for 400 V, 3-phase, 50 Hz or 3x230V 50/60 Hz

Display TFT colour touch screen 10.4“ with buttons

programmable control system (4x200 programs, maximum 250 cutting steps in each of them)

language versions availability

cuts counter

lockable main switch

digital cut dimension setting and monitoring

optical and mechanical cut line indication

even and uneven repeating

semiautomatic cutting

programming by cutting

manual cuts dimension setting

clamping without cutting

programmable clamping without cutting

metric/inch measurement system

graphic cuts representation

programs password protection

automatic creation of program

help function for operation and service from the screen

time limited two-hand cuts release

mechanical protection of knife overrunning and cut repeating

automatic knife shielding by the clamp in any position

tables with air cushion – possibilities off/on/automatic

lighting of the table work area

64 control buttons outside the touch screen

integrated calculator

data transfer

protection of programs against deletion

automatic indication of the maintenance period according to the cuts reached

mechanical protection against overloading (tear-off screws)

electric replacement of the cutter with visual help

possibility of mechanical replacement of the knife

electric knife replacement with instructions on the screen

electronic correction of the position

variable clamping time before cutting

false clamp plate (attachable from the front)

optimization of the back gauge speed to each position

safety infrared light barrier

continues checking of knife movement

failure diagnostics and error records

complete tools set

cutting programs transfer via USB flash disk

stainless steel plated tables

double hydraulic system

hydraulic clamping

electronic clamping pressure adjustment for cutting of various materials

back gauge movement by ball bearing race lead screw

knife replacement from the front side of the machine

HSS knifes – 1 pc mounted on the machine and 1 pc in standard accessories

5 pcs of cutting sticks, 2 pcs of bulbs

wooden piler MAXIMA

CE European certificate

GOST certificate

Instructions Manual

Recommended Accessories

10 pcs of cutting sticks

4 pcs of bulbs

10 pcs of air nozzles

4 pcs of safety screws

carbon brush

Optional Accessories

M 92 HM knife (Hard Metal)

M 92 HSS knife (High Speed Steel)

M 92 standard knife

Automatic cutting

Spare parts Booklet

Bar-code reader

Technical Specification

Cutting width [mm]

920

Knife movement time per cycle [s]

1,5

Front table length [mm]

702

Max. back gauge distance from cutting line [mm]

930

Table height from the base [mm]

900

Clamp with false clamp plate opening [mm]

130

Clamp without false clamp plate opening [mm]

135

Min. end waste-manual/power drive without false clamp plate [mm]

22/30

Maximum pre-clamping pressure by pedal [N]

300

Clamp pressure [N]

15000-35000

Maximum backgauge speed [mm.s-1]

185

Program storage in memory period

7 years

Displayed backgauge position accuracy reading [mm]

0,01

Total power input

3x400Vx4.5kW

Length/width/height [mm]

2230x2380x1535

Net weight [kg]

2565

Gross weight [kg]

3600

Dimensions of crate [mm]

3070x1820x1900

Options and Features of the Control System

memory capacity for entering and storage of 800 programs in 4 separate password-protected sections with 250 cutting steps each

language versions in control system (Czech, English, German, Spain)

even and uneven repeating

clamping without cutting

programmable clamping without cutting

graphic cut representation

automatic program creation

automatic machine lubrication warning

machine diagnostics
